M 6.4 Ferndale, California

Time:

Latitude: ° | Longitude: ° | Depth: km

At 10:34:24 (UTC) on December 20, 2022, a magnitude 6.4 earthquake occurred on the Northern California coast near Ferndale.

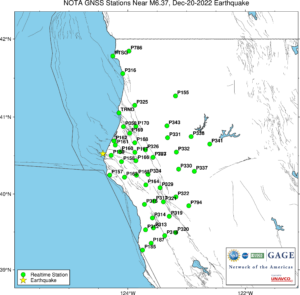

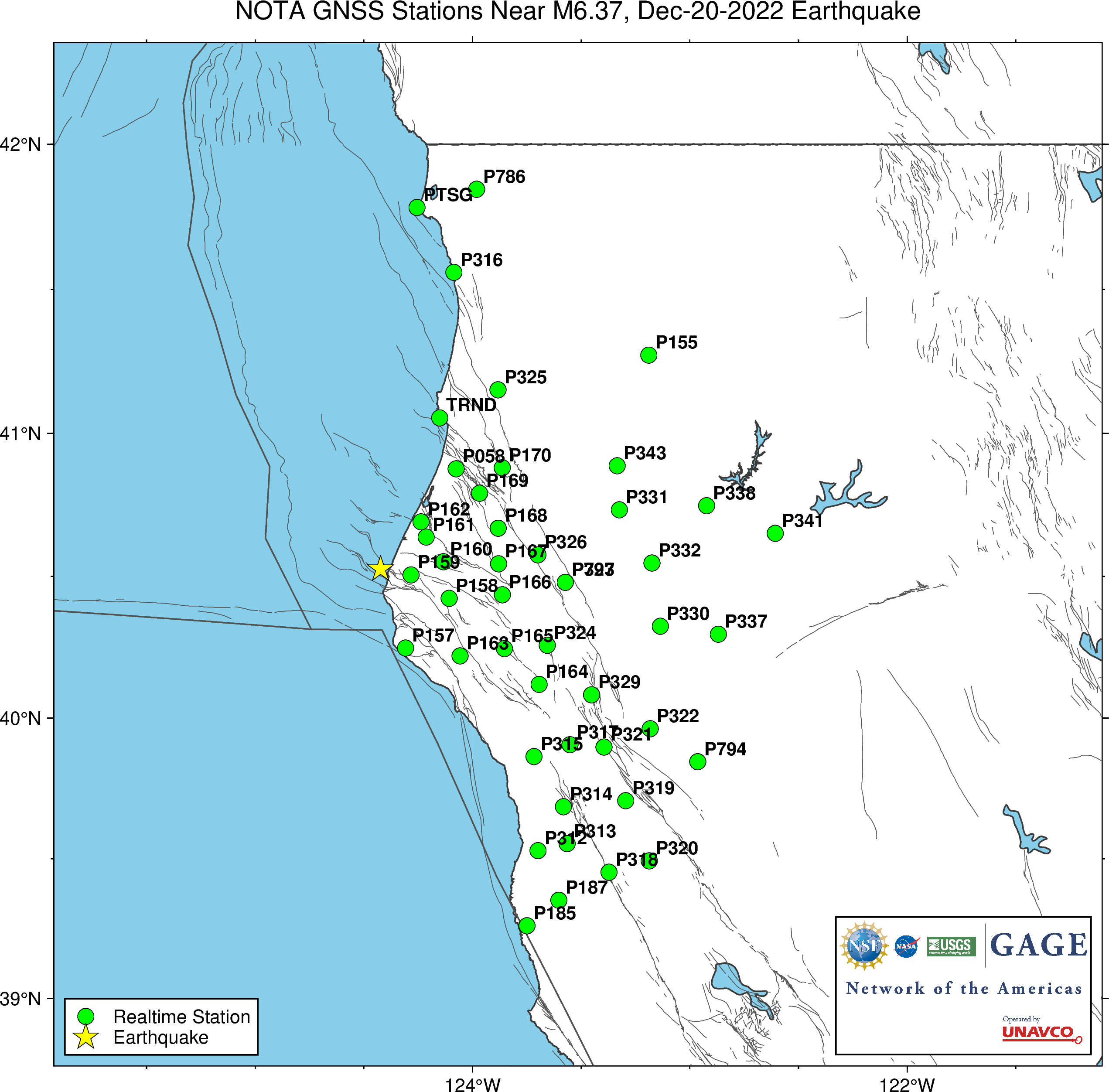

Nearest GPS stations

Epicenter and GPS/GNSS stations within 158 kilometers, where displacement of at least 2 centimeters is predicted.

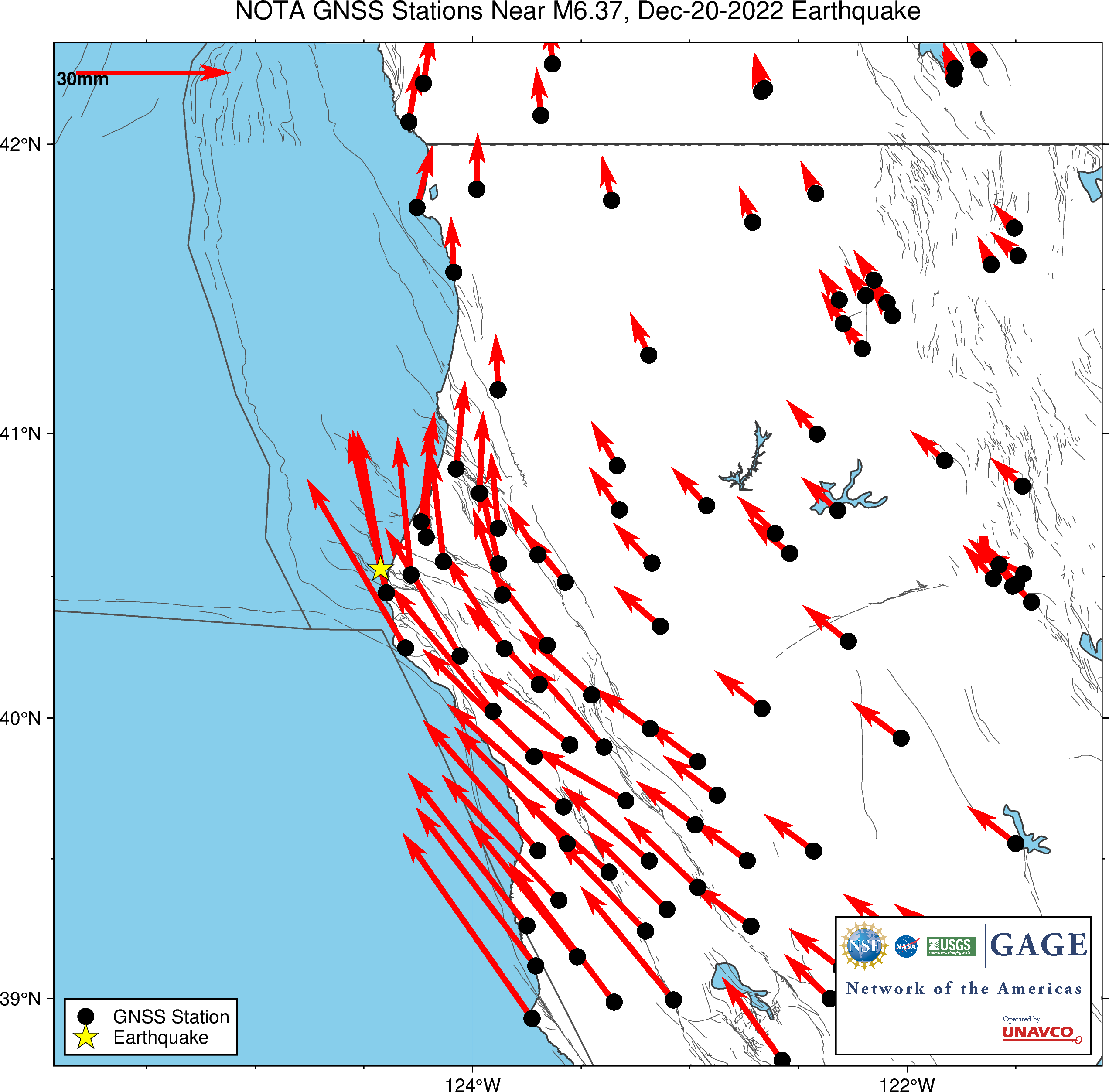

Long-term GPS station velocities

Long-term average velocities of GPS/GNSS stations in the region.

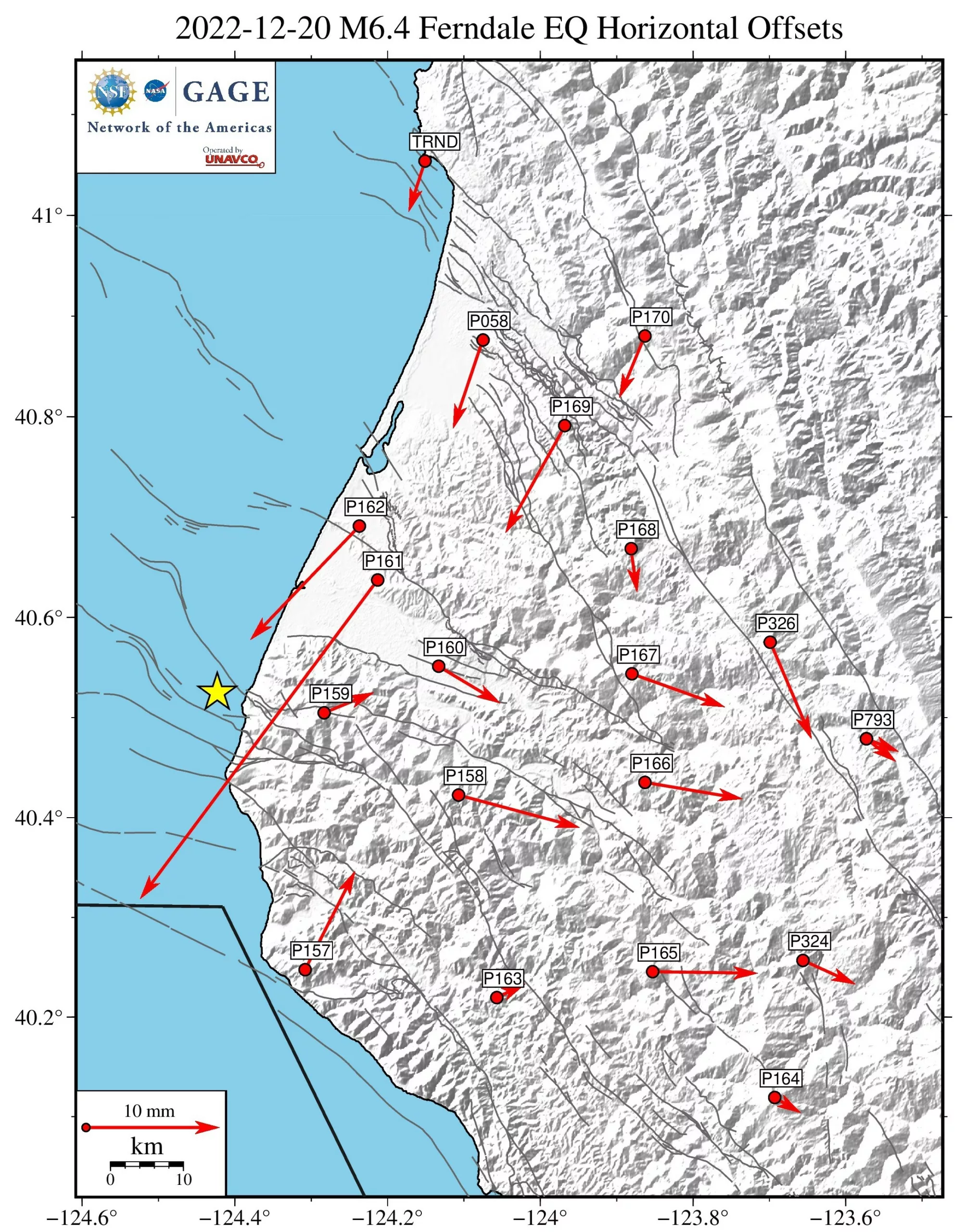

Coseismic Displacement

This plot shows the ground displacement measured by GPS stations due to the earthquake. (Data credit: Tom Herring/MIT. Image credit: Christine Puskas/EarthScope.)

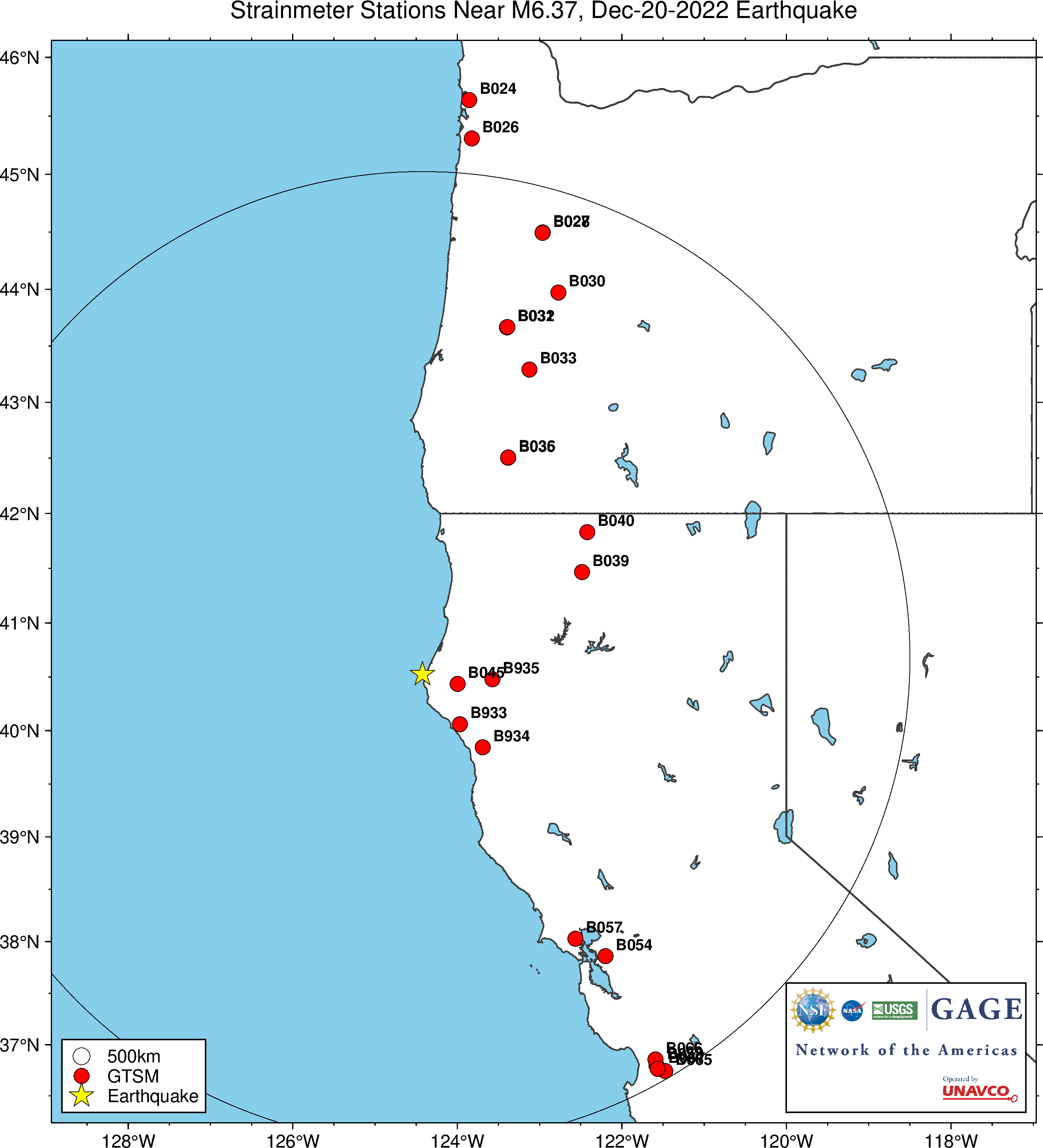

Borehole instruments map

Borehole stations within 500 kilometers of the epicenter (shown by circle).

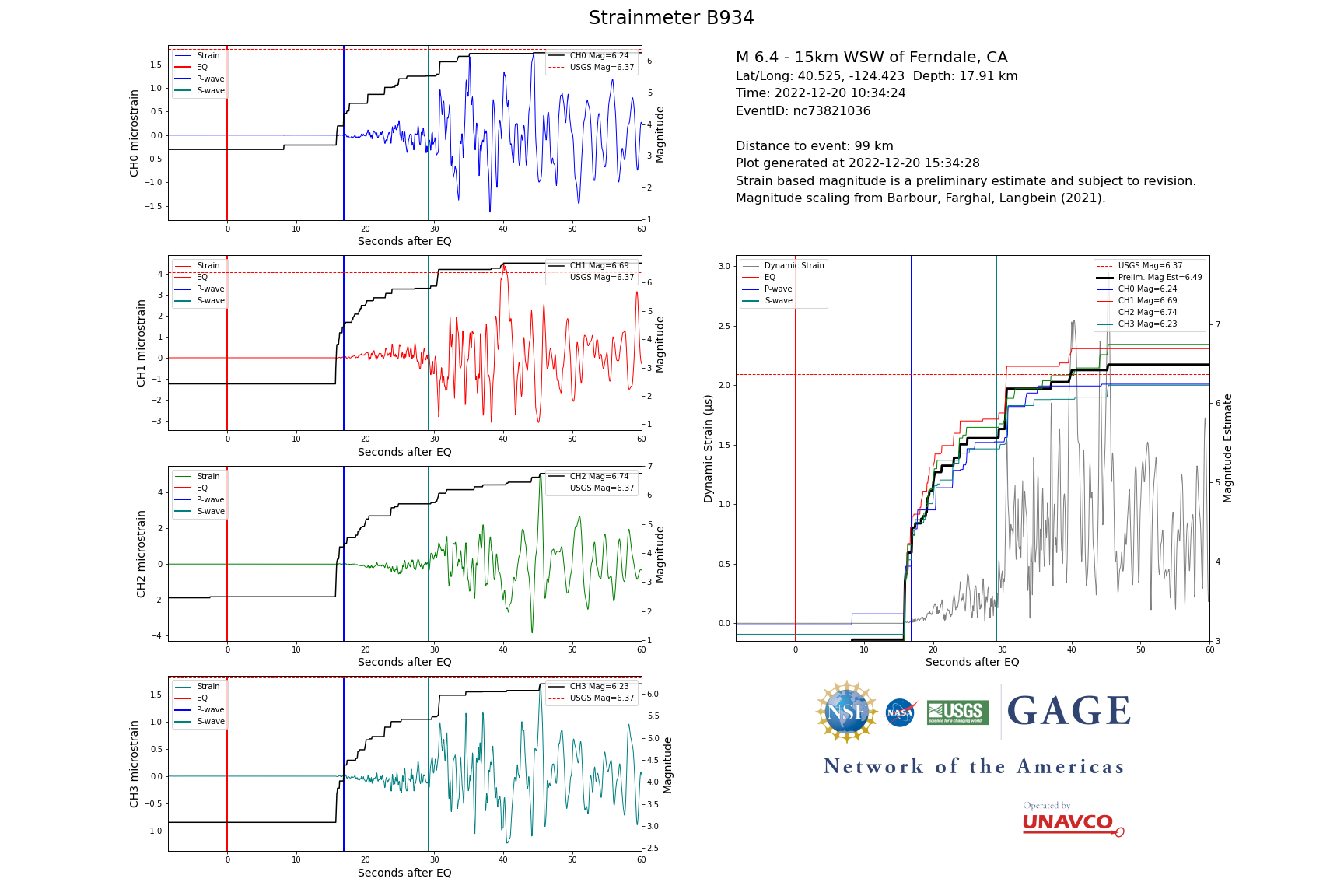

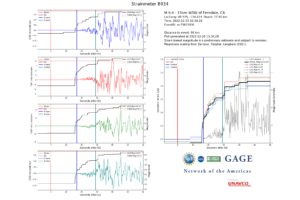

Borehole strainmeter data

Measured strain at nearby borehole station B934.

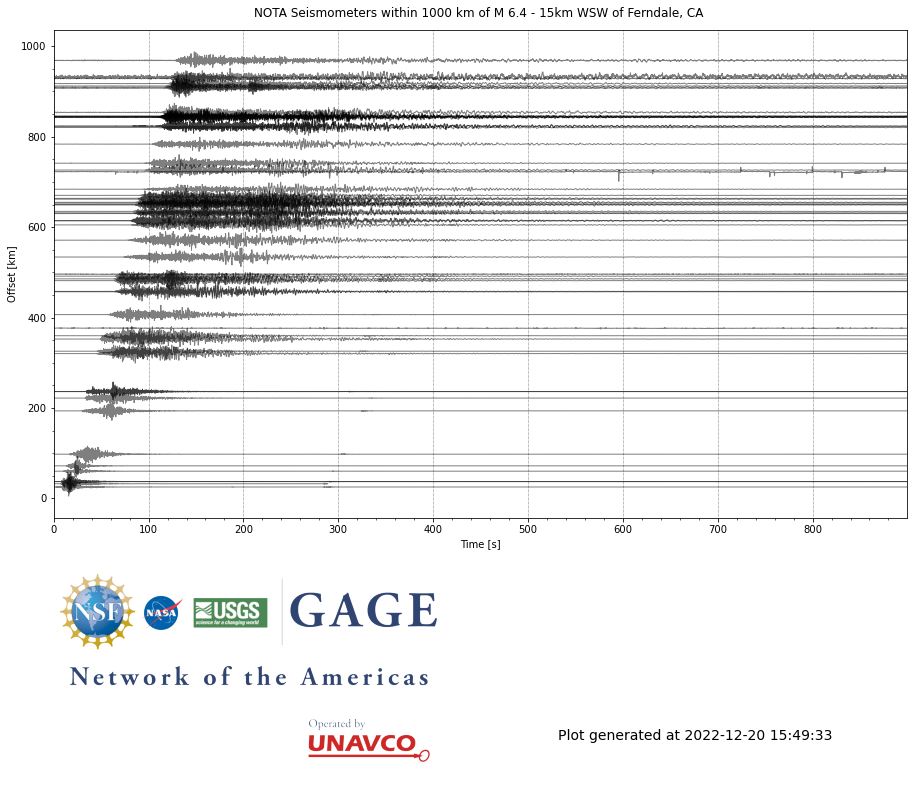

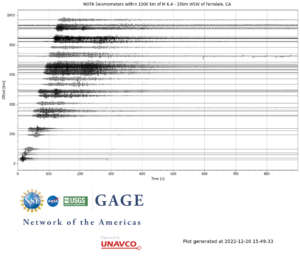

Borehole seismometer data

Borehole seismometer data arranged by distance from the epicenter. (Amplitudes are normalized for ease of viewing.)

GPS data

GPS/GNSS data can be accessed here.

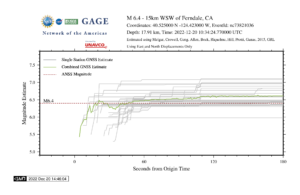

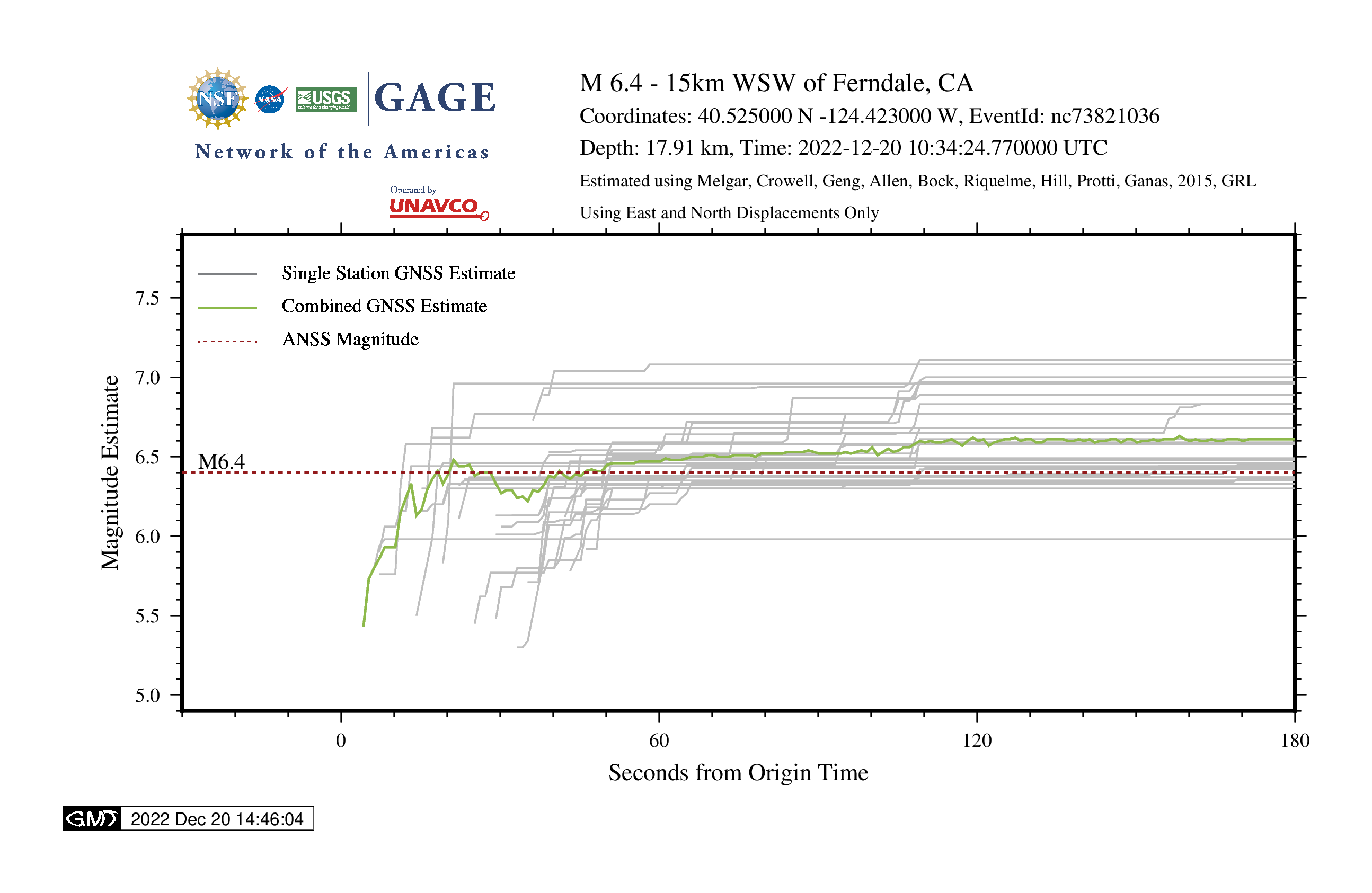

GPS magnitude estimate

Event magnitude estimated by data at GPS/GNSS stations (horizontal motion only).

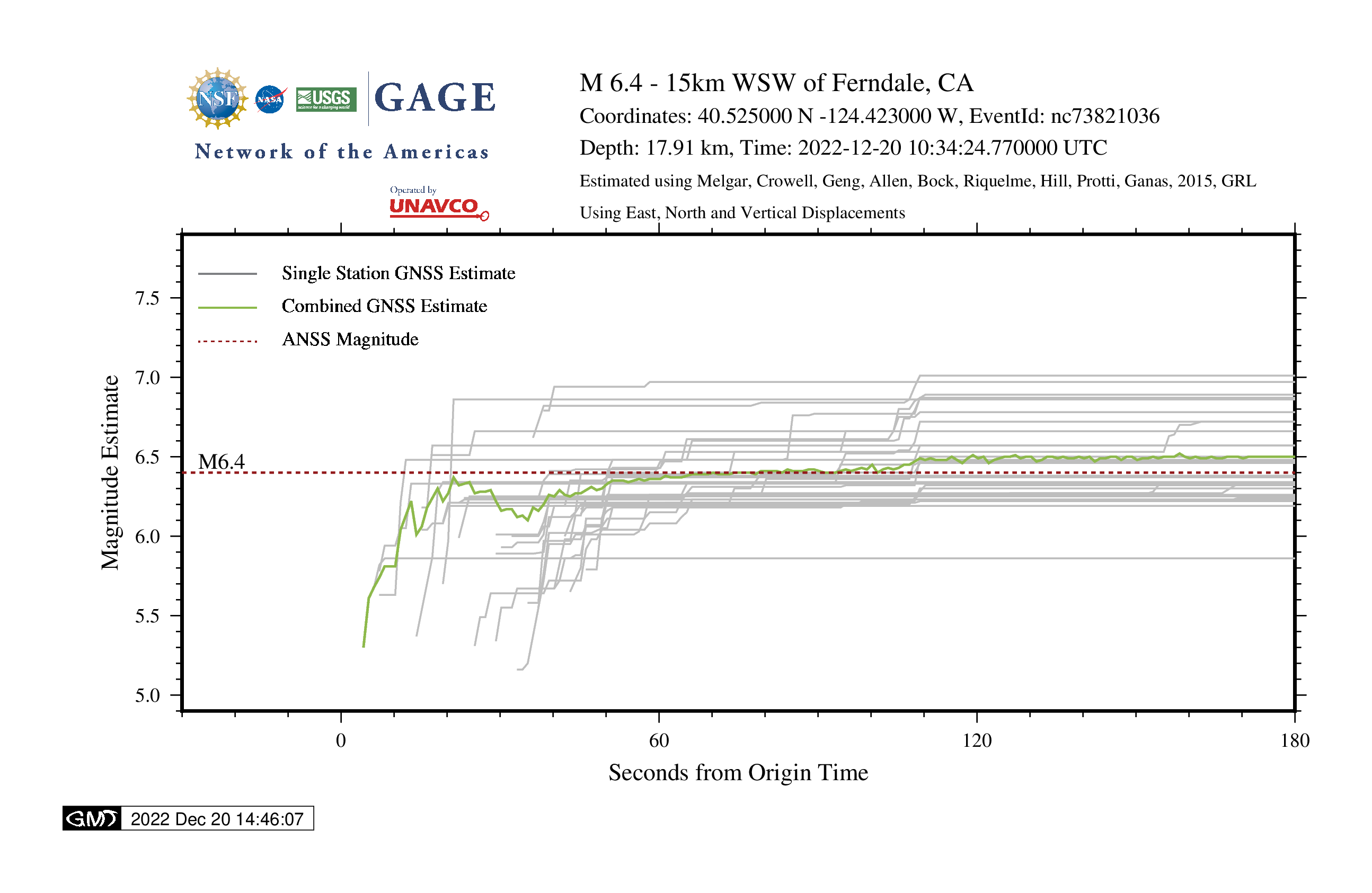

GPS magnitude estimate

Event magnitude estimated by data at GPS/GNSS stations (including vertical motion).

GPS Coseismic Offsets

Data will be available here.

Borehole data

High-rate data from borehole strainmeters will be available here.

These data are provided by the Geodetic Facility for the Advancement of Geoscience (GAGE) Facility, operated by EarthScope Consortium with support from the National Science Foundation and the National Aeronautics and Space Administration under NSF Cooperative Agreement EAR-1724794. To acknowledge use of these data please follow the acknowledgment guidelines.
